Spring legacy 프로젝트 게시판 만들기(1) - 설정
crone
2021. 6. 13. 23:56
spring으로 간단한 흐름과 기능적으로 동작하는 게시판을 만들 예정입니다.
Jungsangjin0/spring-board
Contribute to Jungsangjin0/spring-board development by creating an account on GitHub.
github.com
프로젝트 구조입니다.
spring 에서 mybatis를 사용하기 위해 pom.xml에 dependency를 추가해준다. 그리고 jdbc의 dataSource를 사용하기 위해 dbcp도 추가해줍니다.
<!-- mybatis spring -->
<!-- mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.4.6</version>
</dependency>
<!-- mybatis와 spring을 연결해줄 dependncy -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.2</version>
</dependency>
<!-- spring-jdbc 추가 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- dbcp 라이브러리 추가 -->
<dependency>
<groupId>commons-dbcp</groupId>
<artifactId>commons-dbcp</artifactId>
<version>1.4</version>
</dependency>db는 오라클을 사용할 예정이므로 오라클에서 제공하는 jdbc Driver를 사용하기위해 dependency를 추가 하겠습니다.
<!-- jdbc -->
<dependency>
<groupId>com.jslsolucoes</groupId>
<artifactId>ojdbc6</artifactId>
<version>11.2.0.1.0</version>
</dependency>
dataSource 설정하기
root-context에 dataSource에 대한 bean을 생성하여 설정해 줍니다.
<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="oracle.jdbc.driver.OracleDrvier"/>
<property name="url" value="jdbc:oracle:thin:@127.0.0.1:1521:xe"/>
<property name="username" value="board"/>
<property name="password" value="board"/>
</bean>DataSource DI Test
root-context.xml에 설정한 bean(dataSource)가 잘 설정 되었는지 테스트를 진행합니다.
test는 프로젝트 구조 중 test > java 에 test Class를 만들어서 실행합니다.
먼저 test를 하기 위해 JUnit과 spring-test dependency를 pom.xml에 추가해준다.(JUnit은 version을 4.12로 변경해준다.)
<!-- spring test -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>${org.springframework-version}</version>
<scope>test</scope>
</dependency>
<!-- Test -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
참고) DataSource를 import 할때는 import javax.sql.DataSource 를 import 한다.
package diTest;
import javax.sql.DataSource;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"file:src/main/webapp/WEB-INF/spring/root-context.xml"})
public class DataSourceTest {
@Autowired
DataSource dataSource;
private static final Logger log = LoggerFactory.getLogger(DataSourceTest.class);
@Test
public void dataSourceDITest() {
log.info("dataSource : {}", dataSource);
}
}
@Runwith 은 테스트 실행방법을 확장할 때 사용하는 어노테이션이고, @ContextConfiguration bean을 설정한 context의 파일위치를 지정할 때 사용하는 어노테이션입니다. @Autowired 는 springContext로 부터 bean을 주입 받을때 (DI) 사용하는 어노테이션입니다.
+추가
위에서 테스트한 DataSource의 Connection 생성 test를 해보았는데 오류가 발생하였습니다..
- 테스트 코드
package diTest;
import static org.junit.Assert.assertNotNull;
import static org.junit.Assert.assertThat;
import java.sql.Connection;
import java.sql.SQLException;
import javax.sql.DataSource;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"file:src/main/webapp/WEB-INF/spring/root-context.xml"})
public class DataSourceTest {
@Autowired
DataSource dataSource;
private static final Logger log = LoggerFactory.getLogger(DataSourceTest.class);
@Test
public void dataSourceDITest() {
try {
Connection con = dataSource.getConnection();
log.info("con : {}", con);
assertNotNull(con);
} catch (SQLException e) {
e.printStackTrace();
}
log.info("dataSource : {}", dataSource);
}
}
org.apache.commons.dbcp.SQLNestedException: Cannot load JDBC driver class 'oracle.jdbc.driver.OracleDravier'
at org.apache.commons.dbcp.BasicDataSource.createConnectionFactory(BasicDataSource.java:1429)
at org.apache.commons.dbcp.BasicDataSource.createDataSource(BasicDataSource.java:1371)
at org.apache.commons.dbcp.BasicDataSource.getConnection(BasicDataSource.java:1044)
at diTest.DataSourceTest.dataSourceDITest(DataSourceTest.java:41)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.junit.runners.model.FrameworkMethod$1.runReflectiveCall(FrameworkMethod.java:59)
at org.junit.internal.runners.model.ReflectiveCallable.run(ReflectiveCallable.java:12)
at org.junit.runners.model.FrameworkMethod.invokeExplosively(FrameworkMethod.java:56)
at org.junit.internal.runners.statements.InvokeMethod.evaluate(InvokeMethod.java:17)
at org.springframework.test.context.junit4.statements.RunBeforeTestExecutionCallbacks.evaluate(RunBeforeTestExecutionCallbacks.java:74)
at org.springframework.test.context.junit4.statements.RunAfterTestExecutionCallbacks.evaluate(RunAfterTestExecutionCallbacks.java:84)
at org.springframework.test.context.junit4.statements.RunBeforeTestMethodCallbacks.evaluate(RunBeforeTestMethodCallbacks.java:75)
at org.springframework.test.context.junit4.statements.RunAfterTestMethodCallbacks.evaluate(RunAfterTestMethodCallbacks.java:86)
at org.springframework.test.context.junit4.statements.SpringRepeat.evaluate(SpringRepeat.java:84)
at org.junit.runners.ParentRunner.runLeaf(ParentRunner.java:366)
at org.springframework.test.context.junit4.SpringJUnit4ClassRunner.runChild(SpringJUnit4ClassRunner.java:251)
at org.springframework.test.context.junit4.SpringJUnit4ClassRunner.runChild(SpringJUnit4ClassRunner.java:97)
at org.junit.runners.ParentRunner$4.run(ParentRunner.java:331)
at org.junit.runners.ParentRunner$1.schedule(ParentRunner.java:79)
at org.junit.runners.ParentRunner.runChildren(ParentRunner.java:329)
at org.junit.runners.ParentRunner.access$100(ParentRunner.java:66)
at org.junit.runners.ParentRunner$2.evaluate(ParentRunner.java:293)
at org.springframework.test.context.junit4.statements.RunBeforeTestClassCallbacks.evaluate(RunBeforeTestClassCallbacks.java:61)
at org.springframework.test.context.junit4.statements.RunAfterTestClassCallbacks.evaluate(RunAfterTestClassCallbacks.java:70)
at org.junit.runners.ParentRunner$3.evaluate(ParentRunner.java:306)
at org.junit.runners.ParentRunner.run(ParentRunner.java:413)
at org.springframework.test.context.junit4.SpringJUnit4ClassRunner.run(SpringJUnit4ClassRunner.java:190)
at org.eclipse.jdt.internal.junit4.runner.JUnit4TestReference.run(JUnit4TestReference.java:89)
at org.eclipse.jdt.internal.junit.runner.TestExecution.run(TestExecution.java:41)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:542)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:770)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.run(RemoteTestRunner.java:464)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.main(RemoteTestRunner.java:210)찾아보니 BasicDataSource bean을 설정할 때 property로 설정한 driverClassName의 value에 오타가 있었습니다.
<!--잘못된 설정-->
<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="oracle.jdbc.driver.OracleDravier"/>
<property name="url" value="jdbc:oracle:thin:@127.0.0.1:1521:xe"/>
<property name="username" value="board"/>
<property name="password" value="board"/>
</bean>
<!--바꾼 설정-->
<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="oracle.jdbc.driver.OracleDriver"/>
<property name="url" value="jdbc:oracle:thin:@127.0.0.1:1521:xe"/>
<property name="username" value="board"/>
<property name="password" value="board"/>
</bean>위에서 볼 수 있듯이 value의 마지막에 OracleDriver가 아닌 OracleDravier 의 오타가 이유였습니다..
위와 같이 mybatis 사용에 필요한 SqlSessionFactoryBean과 sql명령을 실행할 sqlSessionTemplate의 bean을 생성해 줍니다.
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
xsi:schemaLocation="http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd">
<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="oracle.jdbc.driver.OracleDrvier"/>
<property name="url" value="jdbc:oracle:thin:@127.0.0.1:1521:xe"/>
<property name="username" value="board"/>
<property name="password" value="board"/>
</bean>
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="configLocation" value="classpath:mybatis/mybatis-config.xml"/>
<property name="mapperLocations" value="classpath:mybatis/mapper/*-mapper.xml"/>
<property name="dataSource" ref="dataSource"/>
</bean>
<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
<constructor-arg index="0" ref="sqlSessionFactory"/>
</bean>
</beans>
SqlSessionFactoryBean의 bean을 생성할 때 속성값으로 configLocation을 설정하는데 value값으로 mybatis 설정 xml 을 전달해줍니다. 경로는 war로 배포했을 때 경로를 기준으로 합니다.
WAR 파일의 파일 구조를 보면 아래와 같습니다.
classpath는 WEB-INF 아래 classes 부터 찾겠다는 뜻입니다. *-mapper.xml 는 xml 파일 이름이 -mapper로 끝나는 xml 파일들을 로드하겠다는 뜻 입니다.
- mybatis-config.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration></configuration>- board-mapper.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="board">
</mapper>
test를 통해 bean들이 객체로 잘 생성되는지 확인 후에 테이블을 생성하였습니다.

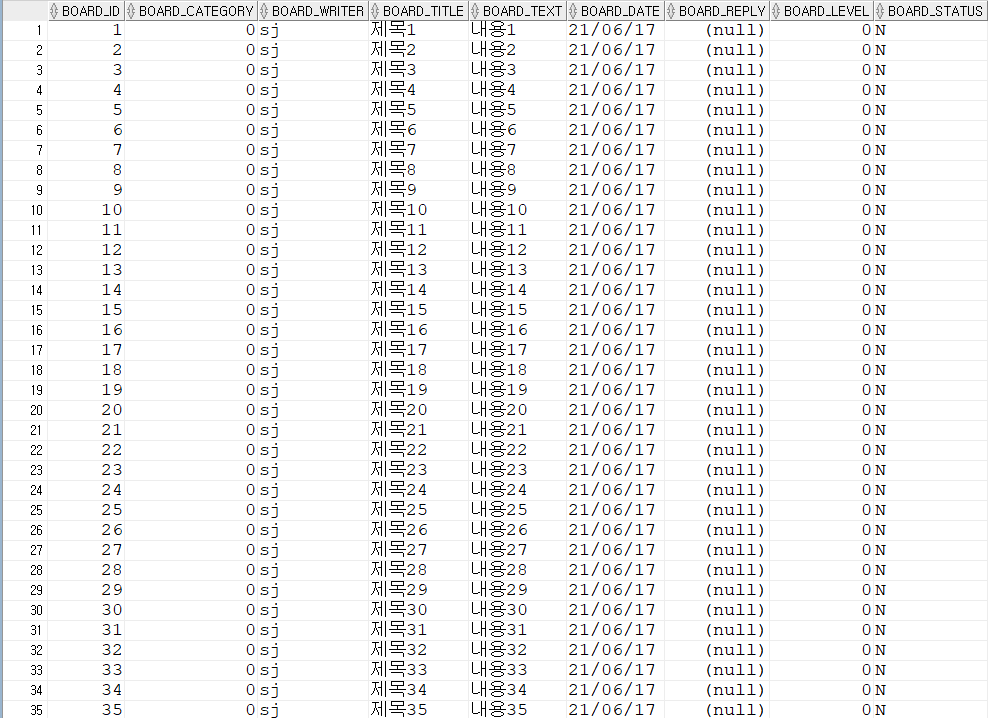

create table board(
board_id number,
board_category number not null,
board_writer varchar2(20) not null,
board_title varchar2(200) not null,
board_text varchar2(4000),
board_date date default sysdate not null,
board_reply number,
board_level number default 0 not null,
board_status char(1) default 'N' not null
);
alter table board add primary key(board_id);
alter table board add constraint fk_board_reply_id foreign key(board_reply)
references board(board_id);
create sequence seq_board nocache;
commit;board_category는 0이 일반 게시판으로 설정하였습니다.
마지막으로 web.xml에 encoding filter를 추가해주었습니다.
web.xml 파일에 추가할 filter 태그
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class> org.springframework.web.filter.CharacterEncodingFilter </filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>오류들
mapper의 namespace를 설정하지 않았을 때 나는 오류
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper>
</mapper><?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="">
</mapper>INFO : org.springframework.web.context.ContextLoader - Root WebApplicationContext: initialization started
WARN : org.springframework.web.context.support.XmlWebApplicationContext - Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'sqlSessionFactory' defined in ServletContext resource [/WEB-INF/spring/root-context.xml]: Invocation of init method failed; nested exception is org.springframework.core.NestedIOException: Failed to parse mapping resource: 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'; nested exception is org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. The XML location is 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'. Cause: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
ERROR: org.springframework.web.context.ContextLoader - Context initialization failed
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'sqlSessionFactory' defined in ServletContext resource [/WEB-INF/spring/root-context.xml]: Invocation of init method failed; nested exception is org.springframework.core.NestedIOException: Failed to parse mapping resource: 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'; nested exception is org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. The XML location is 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'. Cause: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1794)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:594)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:516)
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:324)
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:322)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:878)
at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:879)
at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:551)
at org.springframework.web.context.ContextLoader.configureAndRefreshWebApplicationContext(ContextLoader.java:401)
at org.springframework.web.context.ContextLoader.initWebApplicationContext(ContextLoader.java:292)
at org.springframework.web.context.ContextLoaderListener.contextInitialized(ContextLoaderListener.java:103)
at org.apache.catalina.core.StandardContext.listenerStart(StandardContext.java:4689)
at org.apache.catalina.core.StandardContext.startInternal(StandardContext.java:5155)
at org.apache.catalina.util.LifecycleBase.start(LifecycleBase.java:183)
at org.apache.catalina.core.ContainerBase$StartChild.call(ContainerBase.java:1412)
at org.apache.catalina.core.ContainerBase$StartChild.call(ContainerBase.java:1402)
at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
at java.base/java.lang.Thread.run(Thread.java:834)
Caused by: org.springframework.core.NestedIOException: Failed to parse mapping resource: 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'; nested exception is org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. The XML location is 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'. Cause: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.mybatis.spring.SqlSessionFactoryBean.buildSqlSessionFactory(SqlSessionFactoryBean.java:523)
at org.mybatis.spring.SqlSessionFactoryBean.afterPropertiesSet(SqlSessionFactoryBean.java:380)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1853)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1790)
... 21 more
Caused by: org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. The XML location is 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'. Cause: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.apache.ibatis.builder.xml.XMLMapperBuilder.configurationElement(XMLMapperBuilder.java:120)
at org.apache.ibatis.builder.xml.XMLMapperBuilder.parse(XMLMapperBuilder.java:92)
at org.mybatis.spring.SqlSessionFactoryBean.buildSqlSessionFactory(SqlSessionFactoryBean.java:521)
... 24 more
Caused by: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.apache.ibatis.builder.xml.XMLMapperBuilder.configurationElement(XMLMapperBuilder.java:110)
... 26 more
6월 17, 2021 11:51:34 오전 org.apache.catalina.core.StandardContext listenerStart
심각: Context initialized 이벤트를 [org.springframework.web.context.ContextLoaderListener] 클래스의 인스턴스인 리스너에 전송하는 동안 예외 발생
org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'sqlSessionFactory' defined in ServletContext resource [/WEB-INF/spring/root-context.xml]: Invocation of init method failed; nested exception is org.springframework.core.NestedIOException: Failed to parse mapping resource: 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'; nested exception is org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. The XML location is 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'. Cause: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1794)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:594)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:516)
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:324)
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:234)
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:322)
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202)
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:878)
at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:879)
at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:551)
at org.springframework.web.context.ContextLoader.configureAndRefreshWebApplicationContext(ContextLoader.java:401)
at org.springframework.web.context.ContextLoader.initWebApplicationContext(ContextLoader.java:292)
at org.springframework.web.context.ContextLoaderListener.contextInitialized(ContextLoaderListener.java:103)
at org.apache.catalina.core.StandardContext.listenerStart(StandardContext.java:4689)
at org.apache.catalina.core.StandardContext.startInternal(StandardContext.java:5155)
at org.apache.catalina.util.LifecycleBase.start(LifecycleBase.java:183)
at org.apache.catalina.core.ContainerBase$StartChild.call(ContainerBase.java:1412)
at org.apache.catalina.core.ContainerBase$StartChild.call(ContainerBase.java:1402)
at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
at java.base/java.lang.Thread.run(Thread.java:834)
Caused by: org.springframework.core.NestedIOException: Failed to parse mapping resource: 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'; nested exception is org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. The XML location is 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'. Cause: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.mybatis.spring.SqlSessionFactoryBean.buildSqlSessionFactory(SqlSessionFactoryBean.java:523)
at org.mybatis.spring.SqlSessionFactoryBean.afterPropertiesSet(SqlSessionFactoryBean.java:380)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1853)
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1790)
... 21 more
Caused by: org.apache.ibatis.builder.BuilderException: Error parsing Mapper XML. The XML location is 'file [E:\Dev\board\target\classes\mybatis\mapper\board-mapper.xml]'. Cause: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.apache.ibatis.builder.xml.XMLMapperBuilder.configurationElement(XMLMapperBuilder.java:120)
at org.apache.ibatis.builder.xml.XMLMapperBuilder.parse(XMLMapperBuilder.java:92)
at org.mybatis.spring.SqlSessionFactoryBean.buildSqlSessionFactory(SqlSessionFactoryBean.java:521)
... 24 more
Caused by: org.apache.ibatis.builder.BuilderException: Mapper's namespace cannot be empty
at org.apache.ibatis.builder.xml.XMLMapperBuilder.configurationElement(XMLMapperBuilder.java:110)
... 26 more
jstl이 적용되지 않아서 나는 오류
org.apache.jasper.JasperException: 절대 URI인 [http://java.sun.com/jsp/jstl/core]을(를), web.xml 또는 이 애플리케이션과 함께 배치된 JAR 파일 내에서 찾을 수 없습니다.
at org.apache.jasper.compiler.DefaultErrorHandler.jspError(DefaultErrorHandler.java:55)
at org.apache.jasper.compiler.ErrorDispatcher.dispatch(ErrorDispatcher.java:293)
at org.apache.jasper.compiler.ErrorDispatcher.jspError(ErrorDispatcher.java:80)
at org.apache.jasper.compiler.TagLibraryInfoImpl.generateTldResourcePath(TagLibraryInfoImpl.java:251)
at org.apache.jasper.compiler.TagLibraryInfoImpl.<init>(TagLibraryInfoImpl.java:122)
at org.apache.jasper.compiler.Parser.parseTaglibDirective(Parser.java:431)
at org.apache.jasper.compiler.Parser.parseDirective(Parser.java:489)
at org.apache.jasper.compiler.Parser.parseElements(Parser.java:1445)
at org.apache.jasper.compiler.Parser.parse(Parser.java:144)
at org.apache.jasper.compiler.ParserController.doParse(ParserController.java:244)
at org.apache.jasper.compiler.ParserController.parse(ParserController.java:105)
at org.apache.jasper.compiler.Compiler.generateJava(Compiler.java:203)
at org.apache.jasper.compiler.Compiler.compile(Compiler.java:375)
at org.apache.jasper.compiler.Compiler.compile(Compiler.java:351)
at org.apache.jasper.compiler.Compiler.compile(Compiler.java:335)
at org.apache.jasper.JspCompilationContext.compile(JspCompilationContext.java:597)
at org.apache.jasper.servlet.JspServletWrapper.service(JspServletWrapper.java:399)
at org.apache.jasper.servlet.JspServlet.serviceJspFile(JspServlet.java:386)
at org.apache.jasper.servlet.JspServlet.service(JspServlet.java:330)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:733)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.ApplicationDispatcher.invoke(ApplicationDispatcher.java:713)
at org.apache.catalina.core.ApplicationDispatcher.processRequest(ApplicationDispatcher.java:462)
at org.apache.catalina.core.ApplicationDispatcher.doForward(ApplicationDispatcher.java:387)
at org.apache.catalina.core.ApplicationDispatcher.forward(ApplicationDispatcher.java:315)
at org.springframework.web.servlet.view.InternalResourceView.renderMergedOutputModel(InternalResourceView.java:171)
at org.springframework.web.servlet.view.AbstractView.render(AbstractView.java:316)
at org.springframework.web.servlet.DispatcherServlet.render(DispatcherServlet.java:1373)
at org.springframework.web.servlet.DispatcherServlet.processDispatchResult(DispatcherServlet.java:1118)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1057)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:626)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:733)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:199)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:543)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:690)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:87)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:615)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:818)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1626)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.base/java.lang.Thread.run(Thread.java:834)
6월 17, 2021 12:17:57 오후 org.apache.catalina.core.StandardWrapperValve invoke
심각: 경로 [/board]의 컨텍스트 내의 서블릿 [appServlet]을(를) 위한 Servlet.service() 호출이, 근본 원인(root cause)과 함께, 예외 [절대 URI인 [http://java.sun.com/jsp/jstl/core]을(를), web.xml 또는 이 애플리케이션과 함께 배치된 JAR 파일 내에서 찾을 수 없습니다.]을(를) 발생시켰습니다.
org.apache.jasper.JasperException: 절대 URI인 [http://java.sun.com/jsp/jstl/core]을(를), web.xml 또는 이 애플리케이션과 함께 배치된 JAR 파일 내에서 찾을 수 없습니다.
at org.apache.jasper.compiler.DefaultErrorHandler.jspError(DefaultErrorHandler.java:55)
at org.apache.jasper.compiler.ErrorDispatcher.dispatch(ErrorDispatcher.java:293)
at org.apache.jasper.compiler.ErrorDispatcher.jspError(ErrorDispatcher.java:80)
at org.apache.jasper.compiler.TagLibraryInfoImpl.generateTldResourcePath(TagLibraryInfoImpl.java:251)
at org.apache.jasper.compiler.TagLibraryInfoImpl.<init>(TagLibraryInfoImpl.java:122)
at org.apache.jasper.compiler.Parser.parseTaglibDirective(Parser.java:431)
at org.apache.jasper.compiler.Parser.parseDirective(Parser.java:489)
at org.apache.jasper.compiler.Parser.parseElements(Parser.java:1445)
at org.apache.jasper.compiler.Parser.parse(Parser.java:144)
at org.apache.jasper.compiler.ParserController.doParse(ParserController.java:244)
at org.apache.jasper.compiler.ParserController.parse(ParserController.java:105)
at org.apache.jasper.compiler.Compiler.generateJava(Compiler.java:203)
at org.apache.jasper.compiler.Compiler.compile(Compiler.java:375)
at org.apache.jasper.compiler.Compiler.compile(Compiler.java:351)
at org.apache.jasper.compiler.Compiler.compile(Compiler.java:335)
at org.apache.jasper.JspCompilationContext.compile(JspCompilationContext.java:597)
at org.apache.jasper.servlet.JspServletWrapper.service(JspServletWrapper.java:399)
at org.apache.jasper.servlet.JspServlet.serviceJspFile(JspServlet.java:386)
at org.apache.jasper.servlet.JspServlet.service(JspServlet.java:330)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:733)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.ApplicationDispatcher.invoke(ApplicationDispatcher.java:713)
at org.apache.catalina.core.ApplicationDispatcher.processRequest(ApplicationDispatcher.java:462)
at org.apache.catalina.core.ApplicationDispatcher.doForward(ApplicationDispatcher.java:387)
at org.apache.catalina.core.ApplicationDispatcher.forward(ApplicationDispatcher.java:315)
at org.springframework.web.servlet.view.InternalResourceView.renderMergedOutputModel(InternalResourceView.java:171)
at org.springframework.web.servlet.view.AbstractView.render(AbstractView.java:316)
at org.springframework.web.servlet.DispatcherServlet.render(DispatcherServlet.java:1373)
at org.springframework.web.servlet.DispatcherServlet.processDispatchResult(DispatcherServlet.java:1118)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1057)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:943)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
at org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:898)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:626)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:733)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:231)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:199)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:96)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:543)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:139)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:690)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:87)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:343)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:615)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:65)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:818)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1626)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:49)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1128)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:628)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.base/java.lang.Thread.run(Thread.java:834)
WEB-INF 아래 lib폴더를 만든 후
lib 폴더에 jstl.jar 를 넣어 준 후
project build path library에 추가를 해줍니다.
jar 파일을 추가해주어도 되고 lib폴더를 User Library로 설정하여 추가해주는 방법도 있습니다.
